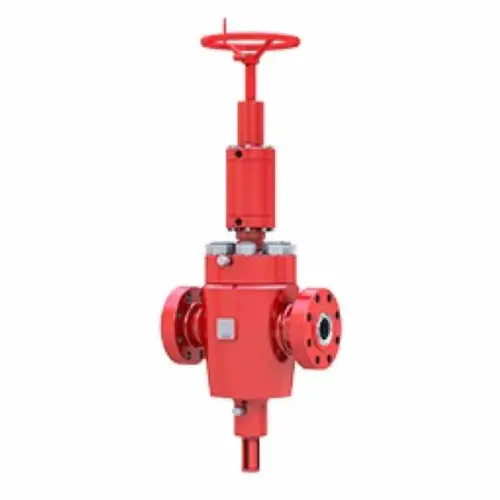

GV150HGTSYR-15 FLS Hydraulically Operated Gate Valve
Built for the harsh oilfield environment, the FLS Hydraulically Operated Frac Valve GV150HGTSYR-15 offers reliable flow control and remote safety for high-pressure fracturing applications.
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Shipped Same Day
- Pick up at a engitechsglobal collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
The FLS Hydraulically Operated Gate Valve – Frac Valve (GV150HGTSYR-15) is designed for high-flow performance in hydraulic fracturing applications. Designed to API 6A specifications, the valve excels in extreme conditions, providing safe, remote shutoff capabilities that are becoming more and more necessary on frac locations today.
Its full-bore configuration offers unrestricted flow, minimizing pressure drops and erosion—ideal for frac trees, zipper manifolds, and flowback systems. The hydraulic actuator delivers reliable remote operation, improving efficiency and safety by keeping operators away from hazardous areas.
Constructed with alloy steel of high strength and rated to pressures of up to 15,000 PSI, this frac valve is designed to withstand even the toughest jobs. With a replaceable gate and seat assembly, it offers the capability of conducting field maintenance swiftly and minimizing downtime, thereby enhancing operational productivity.
Specifications:
Product Code: GV150HGTSYR-15
Valve Type: Hydraulic Gate Valve (Frac Valve)
Pressure Rating: Up to 15,000 PSI
Size Range: 4-1/16″ to 7-1/16″
Temperature Class: K (–75°F to +250°F)
Material Class: EE, FF – API 6A Compliant
Operation: Hydraulic Actuator
End Connections: Flanged or studded
Body Construction: High-strength alloy steel
Design Features: Full bore, non-restrictive, erosion-resistant
Certifications: API 6A, NACE MR0175
Applications:
Hydraulic Fracturing Operations
Zipper Manifold Systems
Frac Trees and Flowback
Temporary Pressure Control Systems
High-Pressure Completion Jobs
Maximize your frac site performance with the FLS Hydraulic Frac Valve GT9538977213EP-44 — tough, reliable, and engineered for high-pressure performance.
